Accurate and efficient patient data management is critical across all medical fields, yet manual data entry methods continue to present significant challenges.
The process of filling out patient forms by hand is not only time-consuming but also prone to errors, which can compromise the quality of care provided. These inefficiencies are particularly prominent in optometry, where precise information is essential for accurate diagnoses and effective treatment plans.
Optometrists frequently encounter issues with manual data entry during eye checkups. The reliance on paper forms leads to delays, potential inaccuracies, and a higher administrative burden, diverting attention from patient care. Given the importance of maintaining accurate records in the medical and optometry fields, it is necessary to find a more efficient solution.
We developed standardized forms and the Eye Camp Android Scan App, which scans forms and automatically inputs data into the database.
Designed to streamline the data entry process, this app enhances the accuracy of patient information while significantly improving the efficiency of eye checkups. By automating data capture and input, optometrists can devote more time to patient interaction and care, ensuring a higher standard of service.
In this blog, we will delve into the use case of this innovative app, showcasing its impact on the optometry field and the substantial benefits it offers to both practitioners and patients.
Breaking Down Our Solution

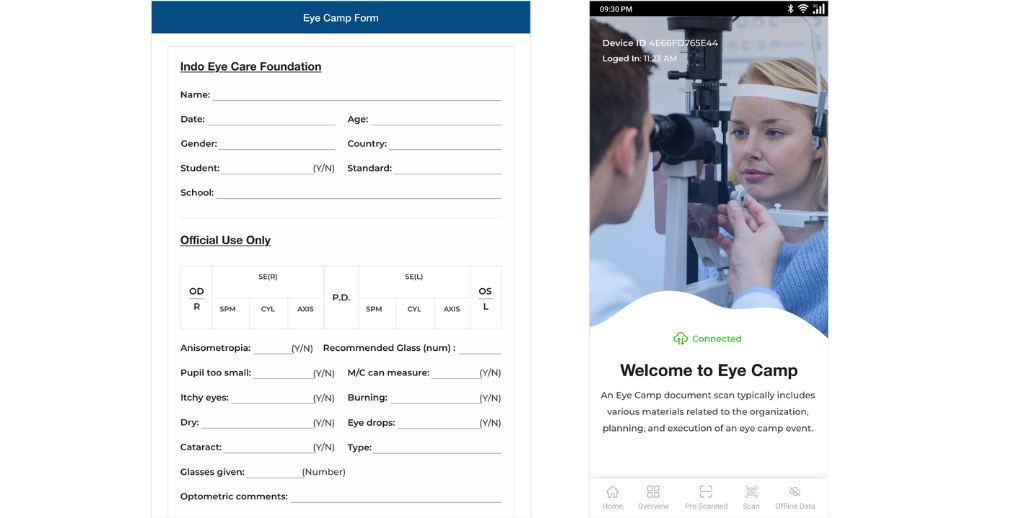

Our solution is two-fold: standardized forms and the Eye Camp Android App. By redesigning paper forms, we prioritized the uniform collection of patient data and optimized it for ease of use.
The Eye Checkup Scanner App leverages advanced Optical Character Recognition (OCR) technology to revolutionize how optometrists handle patient forms. The main features and technologies include:

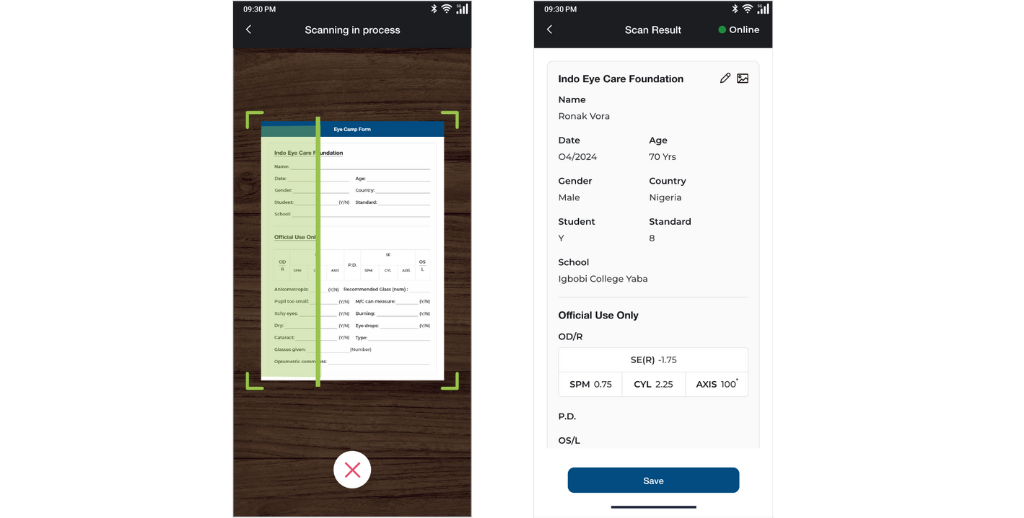

1. OCR Technology: The app scans and digitizes patient forms quickly and accurately, converting handwritten or printed information into digital data. This eliminates the need for manual data entry, reducing errors associated with transcription.
2. Automatic Data Upload: Once digitized, the data is automatically uploaded to a central database. This ensures that patient records are instantly accessible, up-to-date, and securely stored, streamlining the workflow and enhancing data management.

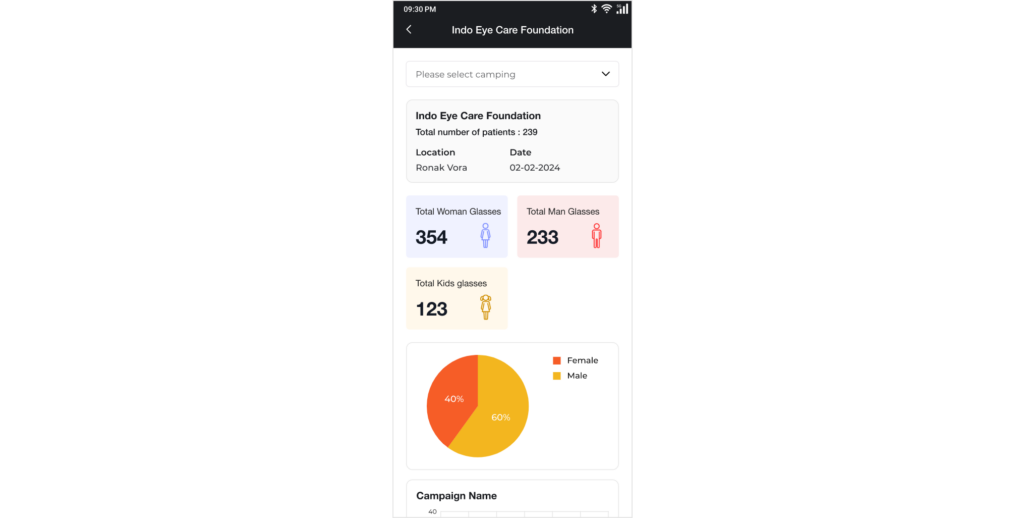

3. Visualization of Data in a Dashboard: A dashboard provides a comprehensive overview of essential patient information that tracks patient trends and guides decision-making.
These features result in the following benefits:
- Increased Efficiency: The app allows optometrists to save valuable time by automating data entry. This increased efficiency means more patients can be seen and treated within the same time frame, enhancing overall productivity.
- Improved Accuracy: The use of OCR technology minimizes the risk of human error in data entry. Accurate data is crucial for making precise diagnoses and crafting effective treatment plans, thereby improving the quality of care.

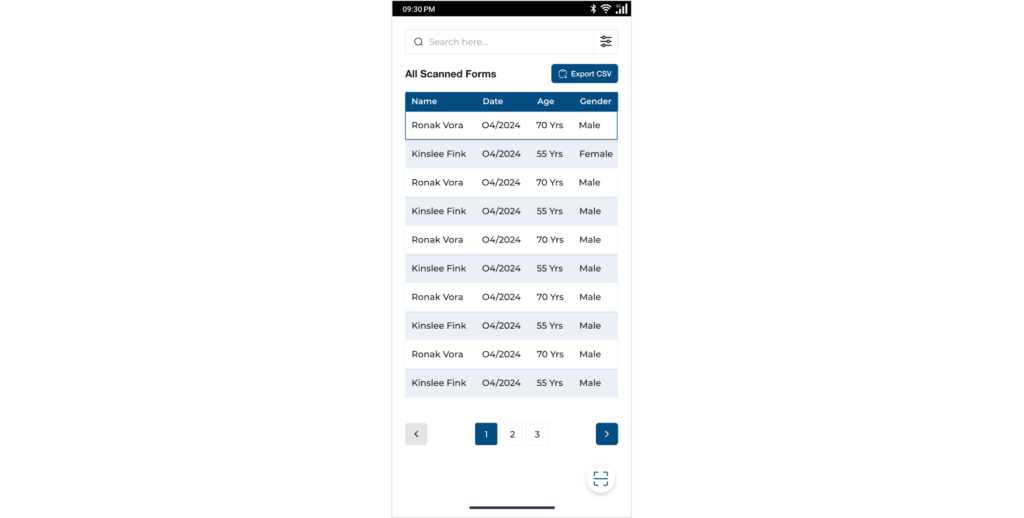

- Enhanced Data Management: Centralized digital records facilitate better data management. Optometrists can easily search, retrieve, and update patient information, ensuring comprehensive and consistent patient care.
Incorporating the Eye Checkup Scanner App into optometry practices transforms the way patient data is handled, leading to improved accuracy, increased efficiency, and enhanced data management. This innovative solution not only addresses the current inefficiencies but also sets a new standard for patient care in the field of optometry.

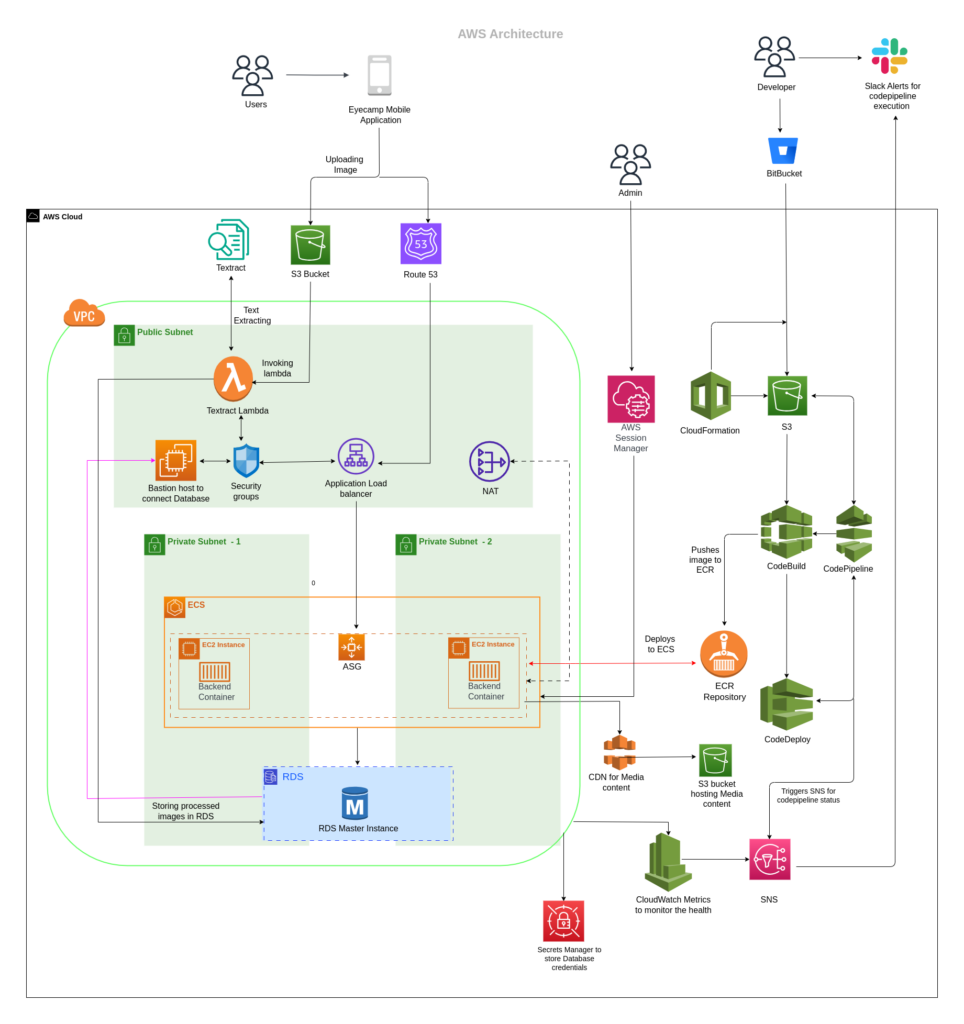

Overview of the App’s Architecture
The Eye Camp Scanner app leverages a variety of AWS technologies to provide a robust, scalable, and secure solution for importing and processing data from standardized forms. Below is an overview of the key technologies used, categorized by their functions:
Storage and Hosting
- S3 Bucket: Used for storing images uploaded by clients, hosting frontend media content, and storing CloudFormation stacks.
- ECR (Elastic Container Registry): Stores Docker images and integrates with ECS for easier deployment.
Content Delivery
- CloudFront: Speeds up distribution of media content (HTML, CSS, JS, images) by caching and reducing latency.
Compute and Orchestration
- ECS Cluster: Fully managed container orchestration service for deploying, managing, and scaling containerized applications using Docker images from ECR.
- EC2 Instances: Used in ECS to run Docker containers with auto-scaling and as a bastion host for secure database connections.
- Lambda: Serverless computing service integrated with S3 and Textract for processing images and extracting text.
Security and Management
- Session Manager: Establishes secure connections to EC2 instances without using SSH keys or public IP addresses.
- Secrets Manager: Stores database credentials and application secrets securely.
- Security Groups: Act as virtual firewalls, controlling inbound and outbound traffic for RDS, bastion host, ECS container instances, and load balancer.
- NAT Gateway: Allows instances in private subnets to connect to services outside the VPC while maintaining security.
Database
- RDS (Relational Database Service): Stores text extracted from images and other application data in separate schemas.
Networking and Load Balancing
- Application Load Balancer: Distributes incoming requests to ECS services (containers).
- Route53: DNS service that routes traffic to the front end (CloudFront) and back end (load balancer).
Auto-scaling and Monitoring
- Auto-Scaling Groups: Maintain a fixed number of healthy container instances.
- CloudWatch Metrics: Collects and stores metrics and logs from AWS services, monitoring instance health and execution logs.
CI/CD Pipeline
- CodePipeline: Automates build, test, and deploy phases of the release process triggered by code changes.
- CodeBuild: Compiles source code and produces deployment-ready artifacts stored in ECR.
- CodeDeploy: Creates blue/green deployments, ensuring smooth transitions between application versions.
Notifications and Alerts
- SNS (Simple Notification Service): Sends budget alarms, CloudWatch metrics, and pipeline stage notifications to configure email addresses and Slack channels.
Infrastructure as Code
- CloudFormation: Manages the infrastructure setup, storing source code in S3 and triggering CodePipeline on changes.
The Eye Camp Scanner app’s architecture showcases the effective use of AWS technologies to create a scalable, efficient, and secure solution for data processing. The app ensures rapid development, deployment, and reliable operation by integrating storage, computing, security, and CI/CD tools.
How Bitcot Reimagines Workflows to Digitally Transform Processes
The Eye Checkup Scanner App exemplifies how integrating advanced technologies like Optical Character Recognition (OCR) can transform traditional workflows. By digitizing patient forms and automating data entry, the app significantly enhances data accuracy and organization. This allows optometrists to focus more on patient care, improving overall efficiency and patient satisfaction.
Our client’s implementation of the Eye Checkup Scanner App demonstrates the tangible benefits of such innovations. The app’s ability to accurately scan and upload data to a central database ensures that patient information is always up-to-date and easily accessible. This streamlined process not only reduces administrative burden but also enhances the quality of patient interactions.
For both practitioners and patients, these improvements mean quicker, more efficient checkups and better-maintained records. This transformation underscores the broader impact of digital solutions in healthcare, driving better outcomes and more efficient practices. By leveraging technology, optometry practices can achieve higher accuracy, improved workflows, and ultimately, enhanced patient care.
At Bitcot, we are dedicated to developing innovative solutions that empower businesses to thrive in a digital world. Our expertise in mobile app development and our focus on integrating cutting-edge technologies enable us to deliver products that drive real value. Schedule a consultation with us today to discover how we can help transform your processes and elevate your business to new heights.
